UNIVERSAL SERVO-DRIVE SERV 01

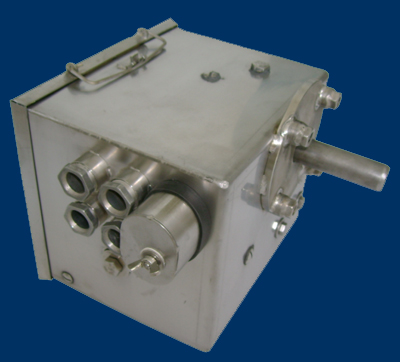

SERV 01 - The unit is used for continuous operating of flaps, gates, outlets, technological points and other equipment which requires exact connected two-way control.
SERVO-DRIVE SERV 01 is made from stainless steels.

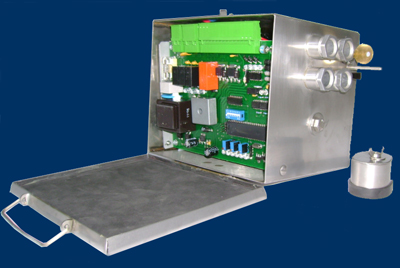

The function is based on a definable turning of the output shaft: variant A from 0 to 400 degrees (one turn), variant B from 0 to 3600 degrees (ten turns). The end positions and adjustable intermediate position are indicated by LED and optionally signalized by a relay output. The positions can be set after unfixing the top cover. The two-way communication with the control unit is realized through the 485 line and indicated by LED. A three-way switch for manual control if needed, blocking is realized by the key switch.
Drive:
- across lines RS 485 - two-way simultaneous communication
- hand - three-way commutator with priority before instructions of communications lines
- optionally all-or-nothing relay remote control
Basic proportions:
- Outer proportions of case: 200x180x200mm
- Output shaft: ø20mm; longitude 60mm; groove
Technical parameters
| Power voltage | 230V / 50Hz |
| Coverage | IP 65 |
| Input | max. 60 W |
| Velocity of output shaft rotation | 0,1 rev / sec |
| Turning moment | 80 Nm |
| Accuracy of orientation | min. 2,5° |
| Angle of rotation | up to 600° |
| Output | RS485, relay contact 250V AC / 1A |
| Max. enviroment temperature | + 55° C |
| Gross weight | + 55° C |
